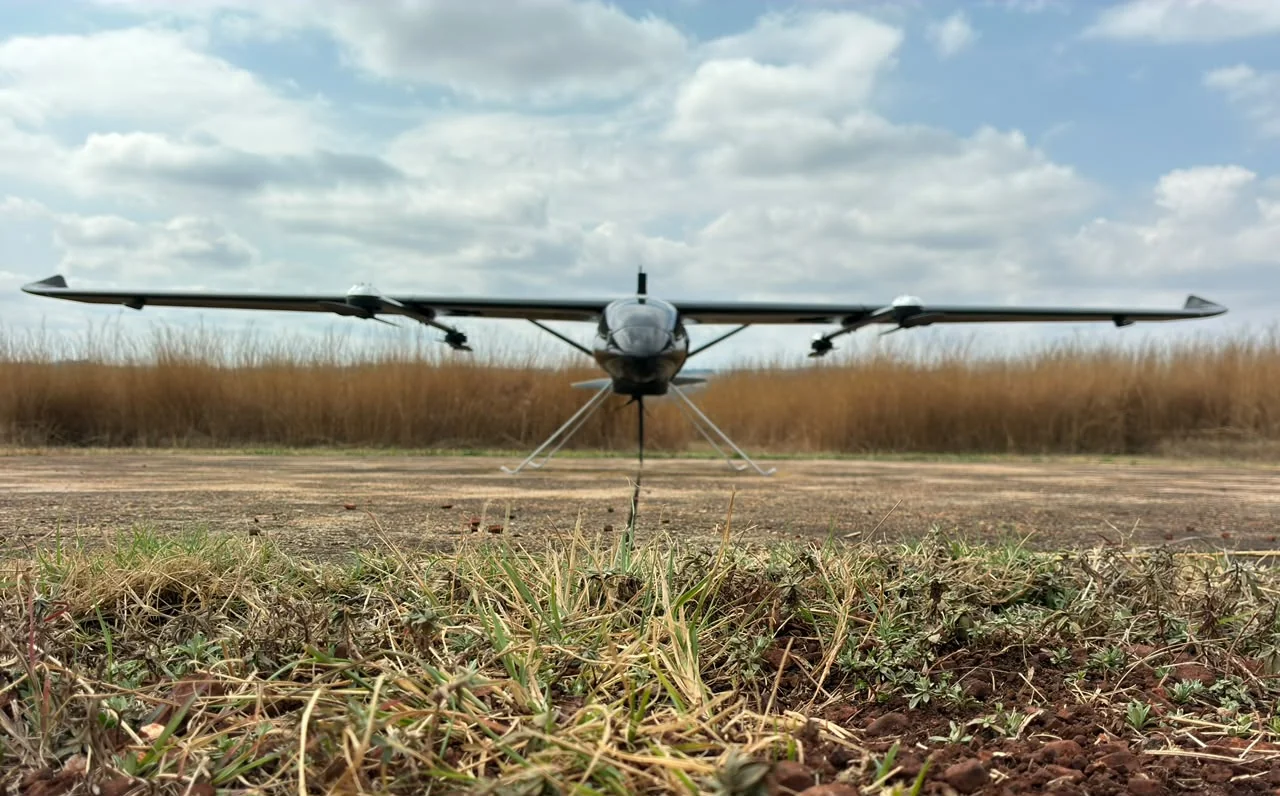

The SRV32 G3 Fixed-Wing VTOL Drone is an electrically powered aircraft designed for aerial observation across mines, industrial sites and linear infrastructure. It combines the operational flexibility of vertical take-off and landing with fixed-wing flight and a standard stabilised optical and thermal camera.
Endurance target: 2 hours
The 12S 40 Ah configuration has a two-hour design target, subject to flight validation.
Plan missions using the validated aircraft configuration, payload, reserve and operating conditions.
A standard aircraft, configurable for the operation
| Parameter | Details |
|---|---|
| Aircraft type | Electrically powered VTOL fixed-wing UAS |
| Wingspan | 3.2 m |
| Vertical propulsion | 4 × MAD electric motors; 21-inch carbon-fibre propellers |
| Forward propulsion | 1 × MAD electric pusher motor; 17-inch carbon-fibre propeller |
| Flight battery | 12S 40 Ah LiPo; one fitted per flight |
| Batteries supplied | Three 12S 40 Ah batteries |
| Flight control | ArduPilot-based; Cube Orange+ |
| Standard command-and-control radio | 100 mW, 2.4 GHz; subject to destination-country spectrum requirements |
| ADS-B | ADS-B In standard |
| Landing assistance | LiDAR rangefinder |
| Visibility | Two high-intensity strobes and navigation lights |

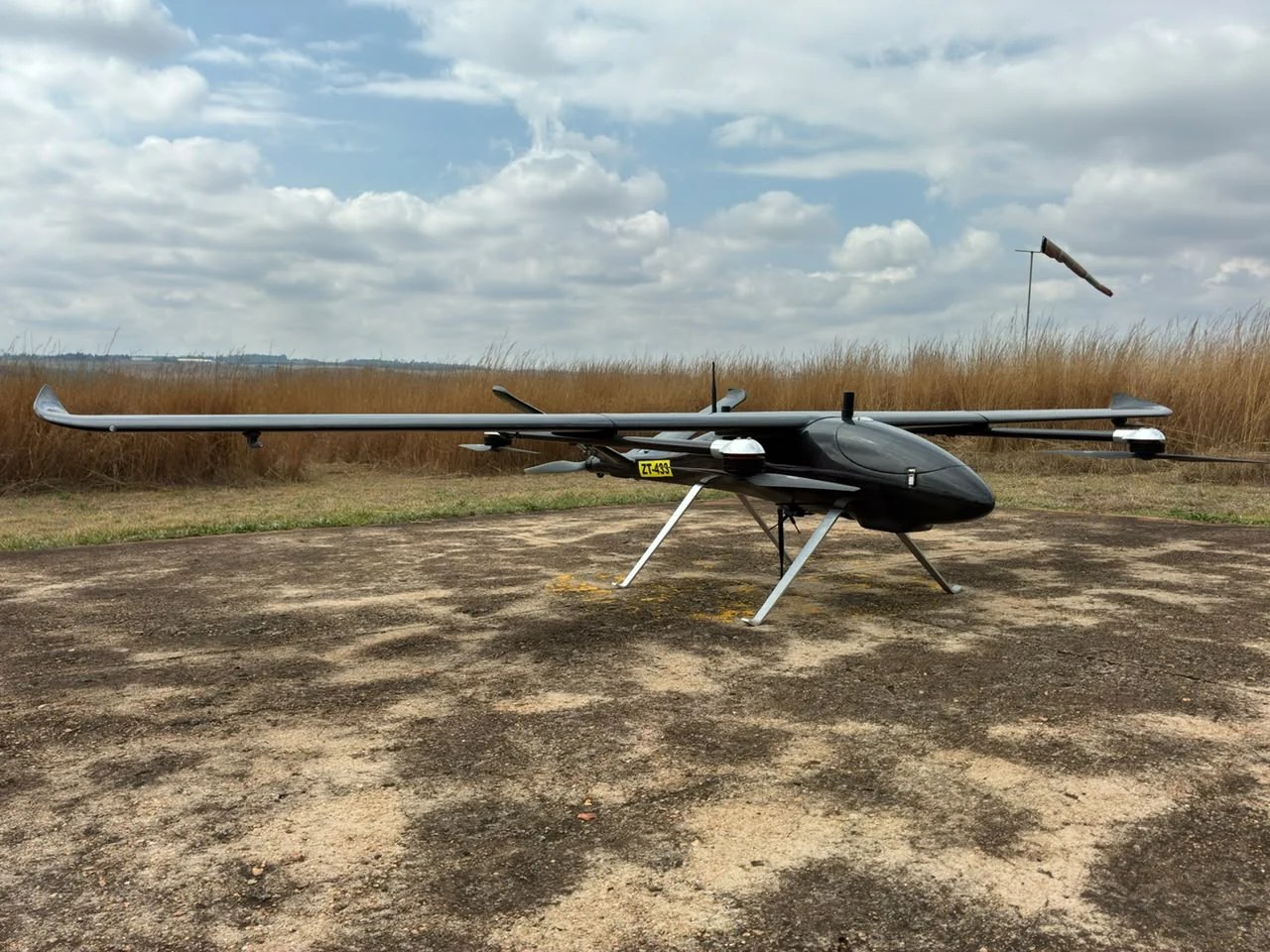

Explore the SRV32 G3
Explore the aircraft photograph and select a system for technical information. Camera, battery and avionics information is available in the system selectors.

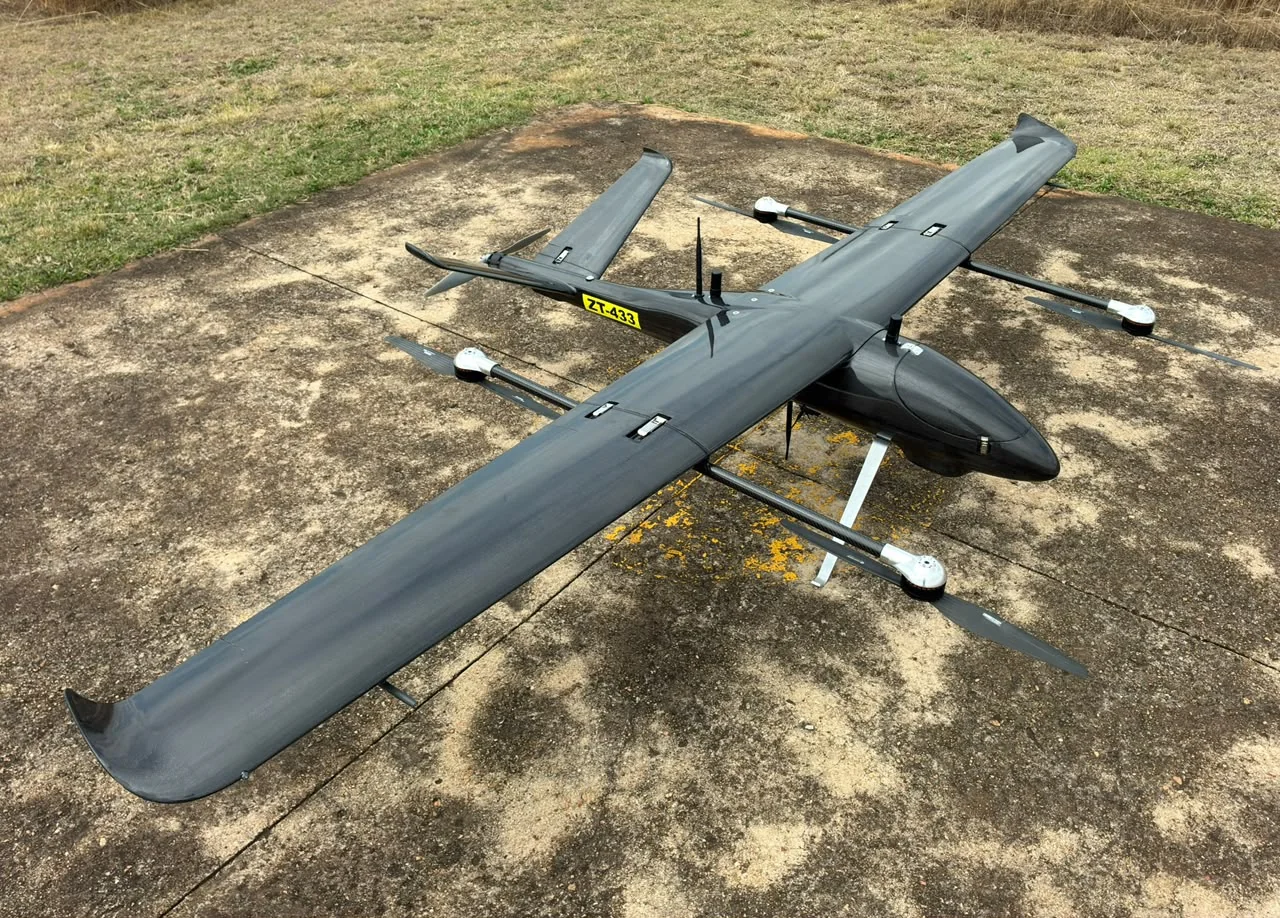

VTOL propulsion system
Four MAD electric motors with 21-inch carbon-fibre propellers provide vertical take-off and landing propulsion.
Fixed-wing propulsion
One MAD electric pusher motor with a 17-inch carbon-fibre propeller provides forward propulsion.
EO/IR surveillance camera
The gimbal-stabilised dual-sensor camera combines Full HD electro-optical imaging with 10× optical zoom and 640 × 512 thermal imaging with a 19 mm lens.
Battery system
One 12S 40 Ah LiPo battery is fitted per flight. Three batteries are supplied with the standard aircraft.
Flight controller and avionics
ArduPilot-based flight control with Cube Orange+. ADS-B In and a LiDAR landing rangefinder are standard.
Standard dual-sensor surveillance camera
| Parameter | Details |
|---|---|
| Camera | Dual-sensor, gimbal-stabilised EO/IR unit; 540 g |
| Electro-optical | Full HD 1920 × 1080; 10× optical zoom; 32× digital zoom |
| Thermal | 640 × 512 IR; 19 mm lens |
| Tracking | Computer-vision object-tracking module |
| Alternative cameras | On request, subject to payload integration and compatibility |
Standard supply
Included with the aircraft
Aircraft and flight kit
- One SRV32 G3 with standard EO/IR camera, avionics and safety equipment.
- Three 12S 40 Ah LiPo batteries; one installed per flight.
- One spare propeller set.
- Dual charger included; model and 40 Ah compatibility confirmed with the quotation.
Documentation and pilot preparation
- VTOL aircraft user manual and applicable maintenance documentation.
- One week of VTOL-specific training for two pilots.
- Six-month equipment warranty, subject to formal quotation terms.
Command & Control (C2) infrastructure is supplied and priced separately. Select a vehicle, trailer, container or fixed-office installation for your operation.
On-site training, operate-train-transfer services and remote maintenance technician training may be arranged according to the customer’s requirements and country of operation.

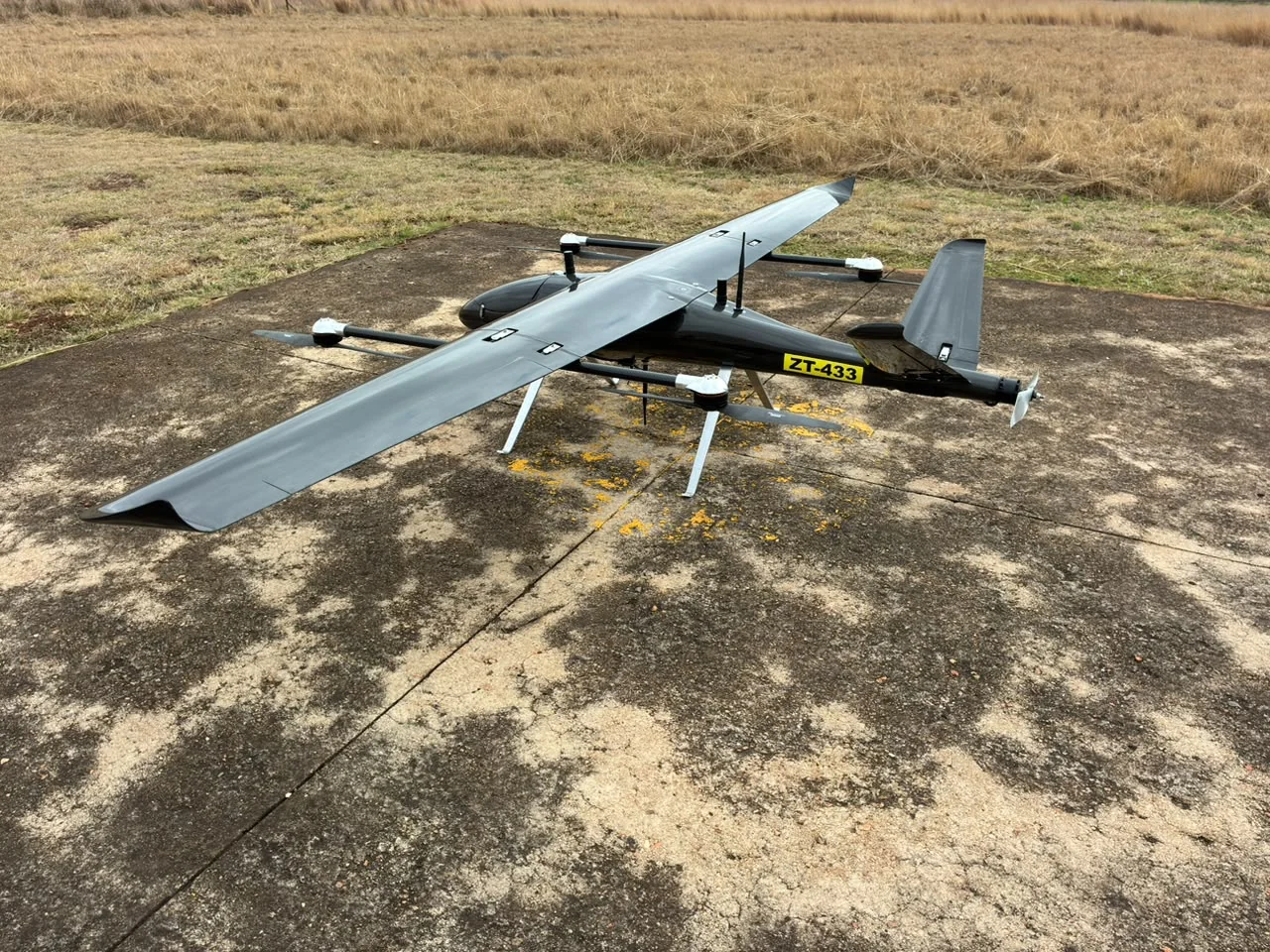

SRV32 G3 airframe
Real Operations
Follow the aircraft in the field and the people and equipment supporting the operation.
Take-off and Command & Control
Aircraft take-off, the Command & Control trailer and the operator workstations inside.
Landing sequence
A second operational sequence showing the aircraft landing.
Specify your SRV32 G3 system
Tell us the observation task, site, operating country and support requirements. Request the current configuration and documentation.
